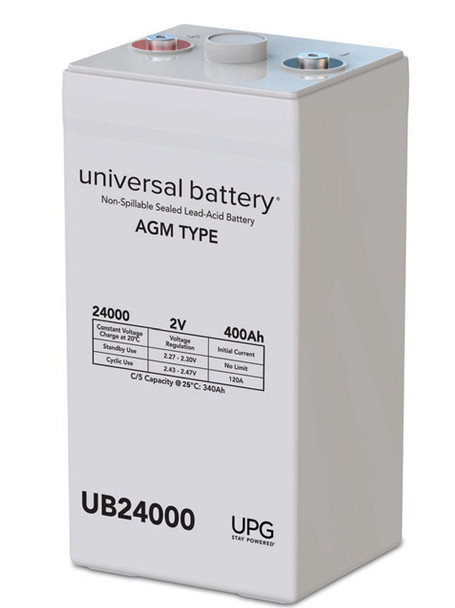

Description
Our maintenance-free sealed lead acid batteries with absorbed glass mat technology offer outstanding performance withstanding high current output and deep cycling. Excellent resistance to vibration, shock, chemicals and heat. Lower self-discharge. Exceptional leak resistance even in an upside-down position. Reliable power for critical applications. DOT 60 classified for easy transportation. UL recognized.
• Universal Battery Replacement Brand
• No Spills, Leaks or Water to Check
• Rechargeable
• Voltage: 2V (2 Volts)
• Capacity: 400Ah
• Terminals: I8
• Chemistry: Sealed Lead Acid (AGM)
• Length: 6.77 inches
• Width: 5.95 inches
• Height: 13.39 inches - Total Height with Terminals: 14.37 inches
• Weight 39.68 lbs
• These are replacement batteries only. You must use your existing wire and cables.
• Data Sheet. Click here.
• M.S.D.S Sheet. Click here.
Specifications
- Nominal Voltage - 2 volts
- Nominal Capacity - 77° F (25° C)
- 20-hr. (20.0 A) - 400 Ah
- 10-hr. (37.2 A) - 372 Ah
- 5-hr. (68.0 A) - 340 Ah
- 1-hr. (240.0 A) - 264 Ah
- Approximate Weight - 55.1 lbs (25.5 kgs)
- Internal Resistance (approx.) - 0.65 m O
- Shelf Life (% of normal capacity at 68° F (20° C))
- 3 Months - 0.91
- 6 Months - 0.83
- 12 Months - 0.64
- Temperature Dependancy of Capacity (20 hour rate)
- 104° F (40° C) - 102%
- 77° F (25° C) - 100%
- 32° F (0° C) - 85%
- 5° F (-15° C) - 65%
- AGM Operational Temperature
- Charge - 32° F to 104° F (0° C to 40° C)
- Discharge - 5° F to 131° F (-15° C to 45° C)
- AGM Storage Temperature - 5° F to 104° F (-15° C to 40° C)
- Cycle Use (Repeating Use)
- Initial Current - 120 A or smaller
- Control Voltage - 2.45 - 2.50 V
- Float Use
- Control Voltage - 2.28 - 2.30 V
