Description

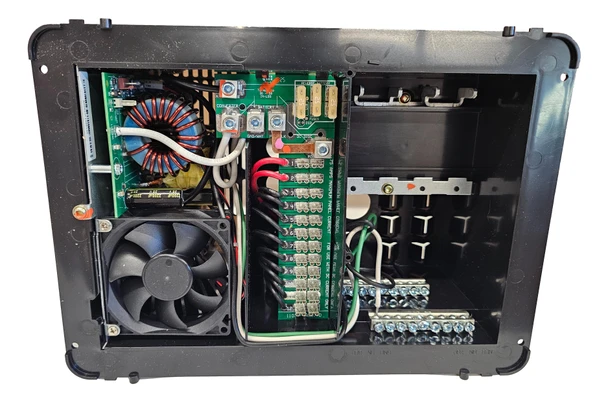

This 2-in-1 AC/DC distribution panel and converter charger keeps your power systems easily accessible inside the RV. Works with lithium and lead acid batteries. Uses a custom charging profile for lithium and multistage charging for lead acid.
Features:
- 2-in-1 unit combines an AC/DC distribution panel with a smart converter charger
- Consolidated system saves space and means you only have to install 1 component
- Power distribution panel provides power to AC and DC applications in your RV
- Requires AC breakers and DC fuses (sold separately)
- Converter charger uses shore power to quickly charge your RV batteries
- Provides continuous power to run 12V loads
- Works with lithium-ion, flooded lead acid, AGM, and gel batteries
- High voltage output provides full, quick charge for your lithium batteries
- Charge Wizard monitors your RV's batteries and automatically begins charging when needed
- Multistage charging helps extend battery life
- Built-in safety features protect your RV's electrical system
- Hardwired installation into your existing RV electrical system
- Heat-resistant polymer construction
- UL listed
- Made in the USA
Specs:
- Application: 12V battery systems
- Rated power output: 810 watts
- Amperage:
- AC distribution: Up to 6 branch circuits rated at 30 amps (using tandem breakers)
- DC distribution fuses: (2) 30 amp and (10) 20 amp
- Converter output: 60 amps
- Voltage:
- AC distribution rating: 120 VAC
- Converter input: 105 - 130 VAC
- Converter output (no load): 13.6 VDC
- Converter output (full load): > 12.6 VDC
- Temperature ranges:
- Operating range: 32 F to 122 F
- Storage range: -4 F to 176 F
- Overall dimensions: 12-1/4" long x 8-3/4" tall x 7-1/4" deep
- Rear cutout: 10-3/4" long x 7-1/4" tall
- Weight: 6.7 lbs
- 2-Year limited warranty
Replacement Cross-Reference:
- WFCO WF-8955PEC
- Parallax 7355
- Parallax 8355
- Parallax 7155
- Powermax PPC-55
Note: Not all units are a direct replacement. Modifications may be required.
