Description
Features:
- AC Distribution Panel is rated for 240 VAC at 50 AMPS
- Lead Acid/ Lithium Switch is NEW feature
- Provisions for up to 12 branch circuit breakers plus a center feed dual 50 Amp main breaker (not included)
- Top ten fuse holders recommended for low current devices such as smoke and carbon monoxide detectors.
- Attractive lightweight panel design made from black impact-resistant high temperature polymers
- Converter/Charger section is accessible from the front
- 12 built-in push and lock strain relief wiring connectors make installation quick and easy and saves over 50% on installation costs
- LED indicators identify which fuse is blown.
- 18 branch fuse holders with 4-30 Amp circuits. Maximum rating 20 Amps on remaining circuits — available with terminal blocks
- DC Section has up to 18 branch fuse holders
- Largest converter/charger available in the industry
- Pantented built in Charge Wizard reduces RV battery recharge time and increases battery life, while reducing battery sulfation and maintenance problems
- AC breakers not included and shown for reference only

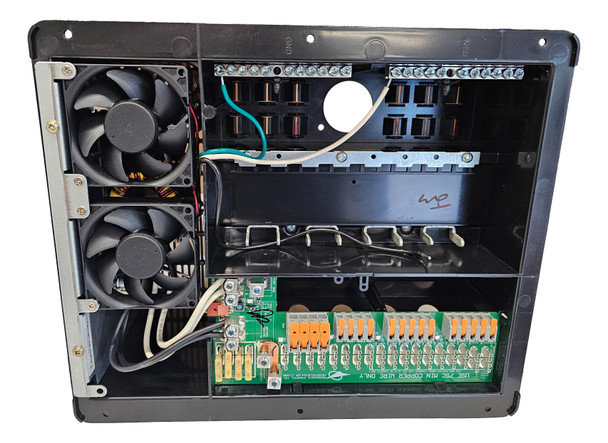

Progressive Dynamics 4500 Series 90 Amp Converter Panel
Two panels in one. Save space and money! Features reverse battery protection, electronic current limiting, low line voltage protection, intelligent cooling fan, high voltage protection, automatic thermal protection, press open door for easy access to circuit breakers, and front access to large wiring compartment.
Technical Specs:
- Maximum DC Output Current: 90 AMPS
- Maximum Continuous Input Power: 1550 Watts
- No Load DC Output Voltage: 13.6 VDC
- No Load Voltage Tolerance: +/- .3 VDC
- Full Load Output Voltage: >12.6 VDC
- Ripple and Noise Voltage: <100 MV RMS
- Input Voltage Tolerance: 105 - 130 VAC
- Input Voltage Frequency: 50-60 HZ
- Peak Inrush Current: 47AMPS
- Input Current at Rated Power: 11.4 AMPS
- Efficiency (Typical): >80%
- Reverse Battery Protection: YES
- Electronic Current Limiting: YES
- Cooling Fan: Auto variable speed
- Back Up Thermal Protection: YES
- Full Function Charge Wizard: YES
- Storage Temperature: -20 - 80C
- Operating Temperature: 0 - 50C
- Hipot Voltage Test: 1240 V @ Input Terminals
- Over Voltage Protection: YES
- Rating (maximum input): 240 VAC/50 AMPS
- Rating (maximum output): 120 VAC/50 AMPS
- Weight: 8lbs
- Cutout Size: 10.125W x 13.25H
- Dimensions: 11.85W x 14.125H x 7.8D
- DC Fuse Positions: 12/18
Replacement Cross-Reference:
PD4590, PD4590K18LR
PD4590K18LS2, PD4590K18LS8
PD4590K18LS8V, PD4590K18LS9
PD4590K18NS2B, PD4590LICSV
PD4590LIK18LS8, PD4590TB
PD4590V
Note: Not all units are a direct replacement. Modifications may be required.
